How To Install Wood Stove Pipe Through Wall

Transitioning from single wall black stove pipe to insulated double wall class a chimney pipe through a flat ceiling.

How to install wood stove pipe through wall. The duraplus thru the wall kit contains all the components needed to install a chimney through the wall and up the side of your home. Step 2 get the measurements. Measure your stove pipe and get its diameter. Continue assembly maintaining the clearances to combustibles.

It is best to locate it 36 inches up the wall from the stove. Align the face of the stove so the opening. Cutting the holes position the stove so the back is at least 16 inches from an outside wall. Single wall stove pipe going from the stove to the chimney must have a minimum of 18 clearance to combustibles.

You could also choose to exit your chimney pipe through a wall using an angled elbow pipe and extend it up above the roof along the side wall of the home. Duraplus rain cap required where chimney pipe terminates. Wood stove through wall chimney pipe installation howto duration. Locate and mark a stud in the wall at.

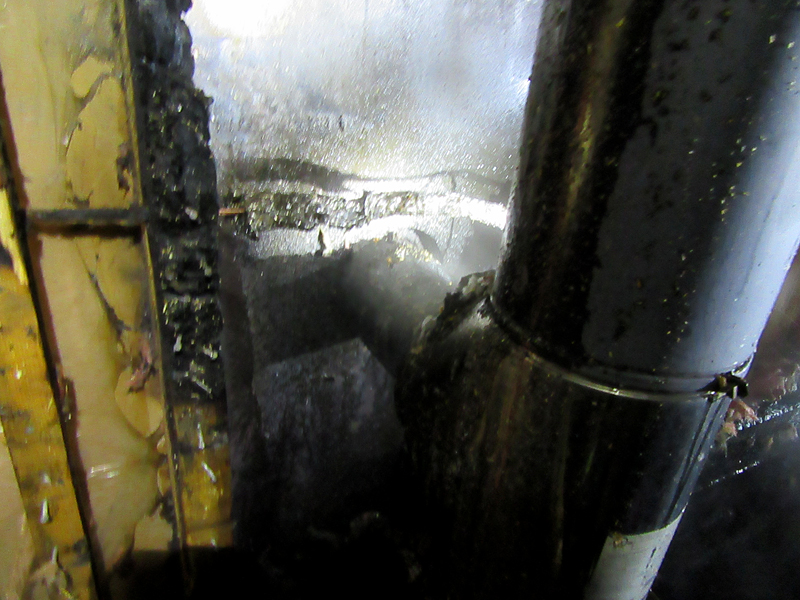

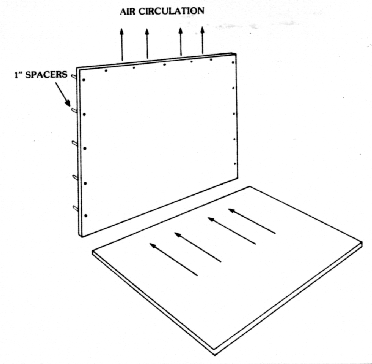

180 degree heat shields are available for single wall pipe to reduce clearances to 6 for walls and 9 to the ceiling. Installing a stove pipe through wall in an existing masonry chimney diy do it yourself how to video. Step 1 find a location. As you assemble each pipe section secure the outer wall using three 10 34 self tapping stainless steel sheet metal screws.

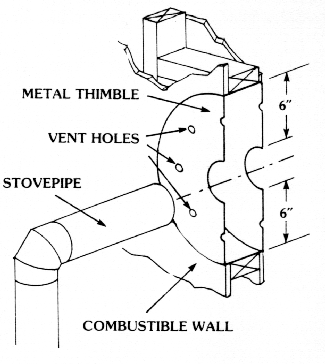

More examples of chimney thimble installations. You can box the chimney collar in with wood framing and add stucco or siding to match the homes exterior. Fit the other end of the pipe. Clearance for double wall stove pipe is 6 for these areas.

The screws should be equidistant around the pipe perimeter. Attach the 90 degree elbow temporarily onto one end of the long section of chimney pipe. We recommend bracing vertical venting every 5 to 6 feet.
